Fontworks Inc. has added weight M / DB to Maru Gothic, a lightweight font for embedded devices such as game consoles, home appliances, IoT devices, in-vehicle devices, and medical devices.
In embedded devices such as game consoles, e-books, home appliances such as printers/multifunction devices/digital cameras/video cameras, IoT devices, in-vehicle devices, medical devices, etc. It was common to use bitmap fonts that have a light load on the CPU and memory.
However, in recent years, along with the higher definition of displays, there is a tendency to attach importance to the design design of user interfaces such as the beauty of characters displayed on the device.
Therefore, in high-specification embedded devices, the use of outline fonts that can draw multiple display sizes such as enlargement/reduction with a single font and that can display beautiful characters is becoming widespread.
On the other hand, depending on the medium or low capacity embedded device, there are severe restrictions on the resources that can be installed. Therefore, there is also the problem that the installed fonts must be limited to low-capacity fonts.
In response to the demands and issues of fonts installed in today's embedded devices, Fontworks has developed lightweight fonts that are beautiful and have a low capacity. We offer round Gothic type after Square Gothic type.
Fonts for embedded devices "Fontworks Embed Types"
Light font product overview
As built-in fonts for low-capacity devices, we offer two types of lightweight fonts that can be selected depending on the application and the environment of the embedded device.
The first is the lightweight font "Type-S," which has a font capacity that is about half that of the basic outline font.
The base font was highly rated as Universal Design (universal design) for "visibility" and "readability"." UD Marugo_Large "Was adopted, and was particular about the legibility and beauty of the character design. Although the font capacity has been reduced, it is as beautiful as the base font.
Since "Type-S" is provided in TrueType format, there is no need for a font engine to display, and scalable and beautiful display is possible regardless of the drawing area of the device. You can easily unify the character design on multiple devices such as "wearable devices" and "smartphone apps" that work together with them.

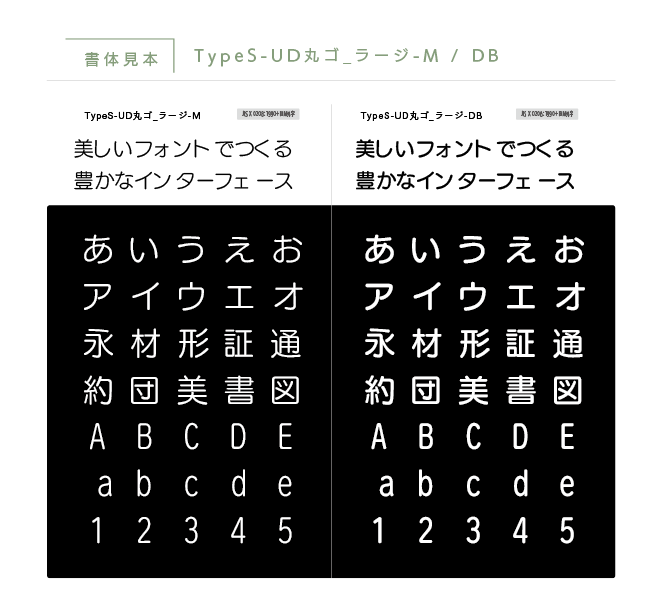

Lightweight font (Type-S) Product overview
| Product name | Type-S series |
|---|---|
| Font name | TypeS-UD Marugo_Large-L TypeS-UD Marugo_Large-M TypeS-UD Marugo_Large-DB TypeS-UD Marugo_Large-B |
| Base font | UD Marugo_Large L/M/DB/B |
| capacity | L=2,056KB (compresses up to 42% from the base font) M=1,673KB (compressed from base font to 40%) DB=1,719KB (base font compressed to 43%) B=1,708KB (Compresses up to 44% from the base font) |
| Font type / Format | Outline font / TrueType font * Since it is provided in TrueType format, it can be displayed without a font engine. |
| Character Sets | JIS X 0208 |
| encoding | unicode |
| Use | For middle- and high-specification embedded devices such as game consoles, e-books, home appliances, in-vehicle devices, and industrial devices |
| price | Contact Us us |
The second is the lightweight font "Type-XS," which is a lightweight version of the lightweight font "Type-S." The font capacity has been reduced to about 1/4 of the outline font that is the base.
Similar to "Type-S", the base font was evaluated for its high Universal Design (universal design) for "visibility" and "readability"." UD Marugo_Large "Adopted. It has a beauty comparable to that of base fonts.
* "Type-XS" is provided in a unique font format, so a font engine for displaying is required.

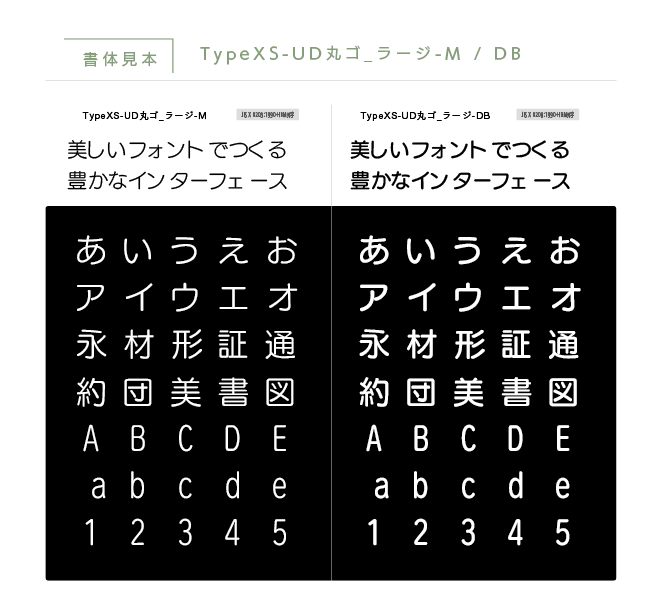

Lightweight font (Type-XS) Product overview
| Product name | Type-XS series |
|---|---|
| Font name | TypeXS-UD Marugo_Large-L TypeXS-UD Marugo_Large-M TypeXS-UD Marugo_Large-DB TypeXS-UD Marugo_Large-B |
| Base font | UD Marugo_Large L/M/DB/B |
| capacity | L=1,092KB (compressed from the base font to 23%) M=765KB (base font compressed to 19%) DB=825KB (compressed from base font to 21%) B=799KB (compressed from the base font to 23%) |
| Font type / Format | Outline font / original format Since it is provided in a unique format, "FW font engine" is required for display. |
| Character Sets | JIS X 0208 |
| encoding | unicode |
| Use | Low-specification embedded devices such as IoT devices, medical devices, e-books, printers, multifunction devices, digital cameras, video cameras, in-vehicle devices, etc. |
| price | Contact Us us |
For screen display or printing for various embedded devices Font engine For correctly displaying Language with complicated writing rules such as Thai, Hebrew, Arabic, etc. on the embedded device. Layout engine Are also available.
